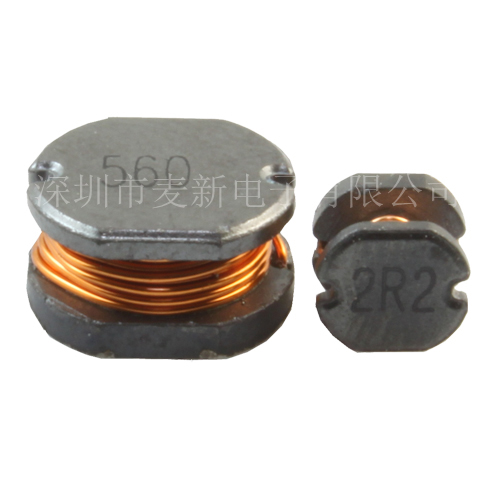

产品名称：MD系列 产品编号：114312-882 产品型号：CD类电感 公司名称：深圳市麦新(MT)电子有限公司
|
点击查看大图 ↑ |
MD TYPE

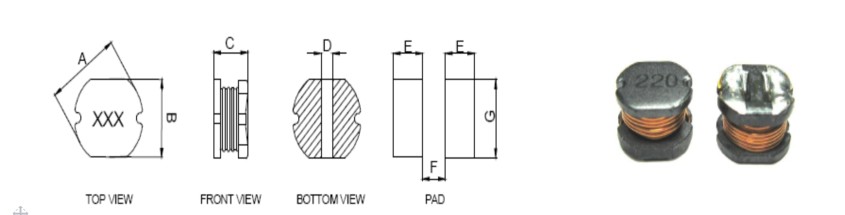

0External dimensions (unit : mm)（外观尺寸
|
PART N0. |
A±0.3 |
B±0.3 |
C±0.3 |
D(Ref) |
E(Ref) |
F(Ref) |
G(Ref) |
|
MD31A |
3.5 |
3.0 |
1.1 |
1.20 |
1.10 |
1.20 |
3.5 |
|
MD31 |
3.5 |
3.0 |
1.6 |
1.20 |
1.10 |
1.20 |
3.5 |
|
MD32 |
3.5 |
3.0 |
2.1 |
1.50 |
1.40 |
1.20 |
3.5 |
|
MD42 |
4.5 |
4.0 |
2.2 |
1.50 |
1.75 |
1.50 |
4.5 |
|
MD43 |
4.5 |
4.0 |
3.2 |
1.50 |
1.75 |
1.50 |
4.5 |
|
MD52 |
5.8 |
5.2 |
2.2 |
1.60 |
2.15 |
1.70 |
5.5 |
|
MD53 |
5.8 |
5.2 |
3.2 |
1.60 |
2.15 |
1.70 |
5.5 |
|
MD54 |
5.8 |
5.2 |
4.5 |
1.60 |
2.15 |
1.70 |
5.5 |
|
MD73 |
7.8 |
7.0 |
3.5±0.4 |
2.40 |
3.0 |
2.0 |
7.5 |
|
MD75 |
7.8 |
7.0 |
5.0±0.5 |
2.40 |
3.0 |
2.0 |
7.5 |
|
MD104 |
10.0 |
9.0 |
4.0±0.5 |
3.10 |
3.75 |
2.5 |
9.5 |
|
MD105 |
10.0 |
9.0 |
5.4±0.5 |
3.10 |
3.75 |
2.5 |
9.5 |
|
MD106 |
10.0 |
9.0 |
6.6±0.5 |
3.10 |
3.75 |
2.5 |
9.5 |
0PART NUMBERING SYSTEM （品名系统）
MD 54 - 100 K - C
1 2 3 4 5
1 Series Name 品名 麦新电感料号.
2 Dimensions 尺寸 外围X高度
3 Inductance 电感值 前两位为有效数字,第三位表0的个数, 150:15 uH. 151 :150uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包装方式 C: Tape& Reel (卷装) B: In Bulk (散装/袋装)
0FEATURES (特性)
Various high power inductors are superior to be high saturation for surface mounting .
高功率，高饱和电流。适用于表面贴装
0APPLICATION (用途)
Power supply for VCRS; OA equipment Digital camera, LCD television set notebook PC, portable communication
equipments, DC/DC converters ,etc.
录像机,笔记型电脑,OA 仪器, 数码相机,液晶电视,小型通信设备,DC/DC 转换器等。
MD TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MD31A |
MD31 |
MD32 |
MD42 |
MD43 |
|||||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
1R0 |
1.0 |
0.06 |
1.4 |
0.05 |
1.60 |
0.04 |
3.34 |
0.03 |
3.50 |
0.03 |
3.80 |
|
1R2 |
1.2 |
|
|
|
|
0.04 |
3.1 |
0.03 |
3.2 |
0.03 |
3.60 |
|
1R4 |
1.4 |
|
|
|
|
|
|
|
|
0.03 |
3.4 |
|
1R5 |
1.5 |
|
|
0.10 |
1.55 |
0.05 |
2.80 |
0.04 |
3.00 |
0.03 |
3.20 |
|
1R8 |
1.8 |
|
|
|
|
0.06 |
2.68 |
0.05 |
2.80 |
0.05 |
2.91 |
|
2R2 |
2.2 |
0.11 |
1.05 |
0.08 |
1.47 |
0.07 |
2.35 |
0.06 |
2.40 |
0.05 |
2.60 |
|
2R7 |
2.7 |
|
|
|
|
0.08 |
2.01 |
0.07 |
2.1 |
0.06 |
2.43 |
|
3R3 |
3.3 |
0.15 |
0.80 |
0.13 |
1.34 |
0.10 |
1.83 |
0.09 |
1.95 |
0.07 |
2.15 |
|
3R9 |
3.9 |
|
|
0.14 |
1.24 |
0.12 |
1.64 |
|
|
0.08 |
1.98 |
|
4R7 |
4.7 |
0.21 |
0.75 |
0.16 |
1.22 |
0.14 |
1.50 |
0.12 |
1.60 |
0.10 |
1.70 |
|
5R6 |
5.6 |
0.25 |
0.65 |
0.19 |
1.09 |
0.16 |
1.36 |
0.14 |
1.50 |
0.10 |
1.60 |
|
6R8 |
6.8 |
0.30 |
0.56 |
0.21 |
0.96 |
0.20 |
1.22 |
0.17 |
1.40 |
0.12 |
1.41 |
|
8R2 |
8.2 |
0.38 |
0.50 |
0.24 |
0.84 |
0.26 |
1.09 |
0.21 |
1.30 |
0.15 |
1.26 |
|
100 |
10 |
0.44 |
0.45 |
0.31 |
0.70 |
0.34 |
0.95 |
0.23 |
1.20 |
0.18 |
1.15 |
|
120 |
12 |
0.50 |
0.43 |
0.37 |
0.65 |
0.36 |
0.88 |
0.30 |
1.10 |
0.21 |
1.05 |
|
150 |
15 |
0.61 |
0.39 |
0.47 |
0.59 |
0.42 |
0.82 |
0.36 |
1.00 |
0.24 |
0.92 |
|
180 |
18 |
0.73 |
0.32 |
0.52 |
0.54 |
0.48 |
0.76 |
0.47 |
0.90 |
0.30 |
0.84 |
|
220 |
22 |
0.91 |
0.28 |
0.66 |
0.48 |
0.66 |
0.63 |
0.52 |
0.80 |
0.38 |
0.76 |
|
270 |
27 |
1.15 |
0.26 |
0.77 |
0.43 |
0.76 |
0.62 |
0.68 |
0.70 |
0.52 |
0.71 |
|
330 |
33 |
1.39 |
0.25 |
1.02 |
0.37 |
0.95 |
0.56 |
0.79 |
0.65 |
0.58 |
0.64 |
|
390 |
39 |
1.88 |
0.23 |
1.12 |
0.32 |
1.10 |
0.51 |
0.97 |
0.60 |
0.63 |
0.59 |
|
470 |
47 |
2.26 |
0.21 |
1.51 |
0.26 |
1.31 |
0.47 |
1.11 |
0.55 |
0.84 |
0.54 |
|
560 |
56 |
2.69 |
0.20 |
1.68 |
0.24 |
1.52 |
0.42 |
1.44 |
0.50 |
0.94 |
0.50 |
|
680 |
68 |
3.18 |
0.18 |
1.92 |
0.23 |
2.02 |
0.38 |
1.61 |
0.40 |
1.12 |
0.46 |
|
820 |
82 |
3.67 |
0.16 |
2.64 |
0.21 |
2.24 |
0.34 |
2.03 |
0.35 |
1.18 |
0.43 |
|
101 |
100 |
4.94 |
0.14 |
2.87 |
0.19 |
3.16 |
0.31 |
2.37 |
0.32 |
1.25 |
0.41 |
|
121 |
120 |
5.35 |
0.12 |
4.08 |
0.17 |
3.46 |
0.280 |
3.29 |
0.30 |
1.47 |
0.38 |
|
151 |
150 |
|
|
4.77 |
0.16 |
5.81 |
0.16 |
3.7 |
0.27 |
1.87 |
0.35 |
|
181 |
180 |
|
|
5.70 |
0.14 |
7.03 |
0.15 |
5.11 |
0.25 |
2.03 |
0.31 |
|
221 |
220 |
|
|
9.00 |
0.12 |
8.03 |
0.14 |
5.7 |
0.22 |
2.69 |
0.29 |
|
271 |
270 |
|
|
|
|
10.95 |
0.12 |
6.51 |
0.20 |
3.09 |
0.26 |
|
331 |
330 |
|
|
|
|
|
0.10 |
9.62 |
0.19 |
4.03 |
0.20 |
|
391 |
390 |
|
|
|
|
|
|
10.75 |
0.18 |
|
|
|
471 |
470 |
|
|
|
|
|
|
10.22 |
0.15 |
|
|
Measuring Freq: 100uH以下:100KHZ/0.25V ；100uH以上1KHZ /0.3V
IDC: The current when the inductance becomes 35% lower than its nominal value ,and temperature rise40℃△t=40℃(ta=20℃)
MDRH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MD52 |
MD53 |
MD54 |
MD73 |
||||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
1R0 |
1.0 |
0.02 |
4.20 |
0.03 |
4.50 |
0.01 |
5.00 |
0.02 |
7.00 |
|
1R2 |
1.2 |
|
|
0.03 |
4.20 |
|
|
|
|
|
1R4 |
1.4 |
|
|
0.03 |
4.1 |
|
|
|
|
|
1R5 |
1.5 |
0.03 |
3.70 |
0.02 |
4.10 |
0.02 |
5.00 |
0.02 |
6.00 |
|
1R8 |
1.8 |
|
|
0.03 |
3.70 |
0.02 |
4.70 |
0.03 |
5.50 |
|
2R2 |
2.2 |
0.04 |
3.20 |
0.03 |
3.50 |
0.02 |
4.50 |
0.03 |
5.00 |
|
2R7 |
2.7 |
0.05 |
2.70 |
0.03 |
3.20 |
0.02 |
3.50 |
|
|
|
3R3 |
3.3 |
0.05 |
2.40 |
0.04 |
2.80 |
0.03 |
3.00 |
0.04 |
4.50 |
|
3R9 |
3.9 |
0.07 |
2.00 |
0.04 |
2.60 |
0.03 |
3.00 |
0.05 |
3.70 |
|
4R7 |
4.7 |
0.08 |
1.80 |
0.05 |
2.50 |
0.03 |
3.00 |
0.05 |
3.50 |
|
5R6 |
5.6 |
0.09 |
1.50 |
0.06 |
2.40 |
0.04 |
2.70 |
0.06 |
3.00 |
|
6R8 |
6.8 |
0.10 |
1.40 |
0.07 |
2.20 |
0.05 |
2.50 |
0.07 |
2.80 |
|
8R2 |
8.2 |
0.13 |
1.30 |
0.09 |
2.00 |
0.06 |
2.00 |
0.09 |
2.00 |
|
100 |
10 |
0.16 |
1.10 |
0.10 |
1.80 |
0.08 |
1.44 |
0.10 |
1.44 |
|
120 |
12 |
0.18 |
1.05 |
0.13 |
1.75 |
0.09 |
1.40 |
0.14 |
1.39 |
|
150 |
15 |
0.23 |
1.00 |
0.15 |
1.70 |
0.10 |
1.30 |
0.15 |
1.24 |
|
180 |
18 |
0.27 |
0.90 |
0.19 |
1.60 |
0.13 |
1.23 |
0.20 |
1.12 |
|
220 |
22 |
0.34 |
0.85 |
0.25 |
1.50 |
0.16 |
1.11 |
0.23 |
1.07 |
|
270 |
27 |
0.40 |
0.75 |
0.29 |
1.40 |
0.20 |
0.97 |
0.27 |
0.94 |
|
330 |
33 |
0.50 |
0.70 |
0.30 |
1.10 |
0.23 |
0.88 |
0.33 |
0.85 |
|
390 |
39 |
0.57 |
0.60 |
0.40 |
1.00 |
0.30 |
0.80 |
0.40 |
0.74 |
|
470 |
47 |
0.68 |
0.55 |
0.43 |
0.90 |
0.33 |
0.72 |
0.56 |
0.68 |
|
560 |
56 |
0.83 |
0.50 |
0.06 |
0.85 |
0.40 |
0.68 |
0.59 |
0.64 |
|
680 |
68 |
1.12 |
0.45 |
0.74 |
0.80 |
0.46 |
0.61 |
0.73 |
0.59 |
|
820 |
82 |
1.20 |
0.40 |
0.87 |
0.65 |
0.55 |
0.58 |
0.88 |
0.54 |
|
101 |
100 |
1.50 |
0.35 |
1.00 |
0.60 |
0.64 |
0.52 |
0.98 |
0.51 |
|
121 |
120 |
1.7 |
0.25 |
1.30 |
0.58 |
0.81 |
0.48 |
1.24 |
0.49 |
|
151 |
150 |
2.00 |
0.22 |
1.50 |
0.43 |
1.00 |
0.40 |
1.39 |
0.40 |
|
181 |
180 |
2.54 |
0.20 |
1.83 |
0.41 |
1.12 |
0.38 |
1.73 |
0.36 |
|
221 |
220 |
3.43 |
0.19 |
2.00 |
0.38 |
1.42 |
0.35 |
2.20 |
0.31 |
|
271 |
270 |
3.84 |
0.18 |
3.06 |
0.35 |
|
|
2.59 |
0.29 |
|
331 |
330 |
4.98 |
0.17 |
4.43 |
0.28 |
|
|
3.34 |
0.28 |
|
391 |
390 |
|
|
|
|
|
|
|
|
|
471 |
470 |
|
|
|
|
|
|
|
|
|
561 |
560 |
|
|
|
|
|
|
|
|
Measuring Freq: 100uH以下:100KHZ/0.25V ；100uH以上1KHZ /0.3V
IDC: The current when the inductance becomes 35% lower than its nominal value ,and temperature rise40℃△t=40℃(ta=20℃)
MD TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MD75 |
MD104 |
MD105 |
MD106 |
||||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
1R0 |
1.0 |
0.01 |
7.50 |
|
|
|
|
|
|
|
1R2 |
1.2 |
|
|
|
|
0.01 |
8.63 |
|
|
|
1R4 |
1.4 |
|
|
0.01 |
7.48 |
|
|
|
|
|
1R5 |
1.5 |
0.01 |
6.50 |
|
|
|
|
0.01 |
8.00 |
|
1R8 |
1.8 |
0.02 |
6.00 |
0.01 |
6.80 |
0.01 |
7.5 |
|
|
|
2R2 |
2.2 |
0.02 |
5.30 |
0.02 |
5.40 |
0.02 |
7.20 |
0.01 |
7.50 |
|
2R7 |
2.7 |
0.03 |
5.00 |
0.02 |
|
|
|
|
|
|
3R3 |
3.3 |
0.03 |
4.50 |
|
2.85 |
0.02 |
6.50 |
0.02 |
7.00 |
|
3R9 |
3.9 |
0.03 |
4.30 |
0.02 |
2.80 |
|
|
|
|
|
4R7 |
4.7 |
0.04 |
4.00 |
0.03 |
2.75 |
0.03 |
5.50 |
0.02 |
6.00 |
|
5R6 |
5.6 |
0.04 |
3.60 |
0.03 |
2.70 |
0.03 |
5.00 |
0.03 |
5.50 |
|
6R8 |
6.8 |
0.05 |
3.20 |
0.03 |
2.65 |
0.03 |
4.50 |
0.03 |
5.00 |
|
8R2 |
8.2 |
0.06 |
2.80 |
0.04 |
2.60 |
0.04 |
4.5 |
0.04 |
4.00 |
|
100 |
10 |
0.07 |
2.30 |
0.04 |
2.38 |
0.05 |
2.60 |
0.04 |
3.00 |
|
120 |
12 |
0.08 |
2.00 |
0.05 |
2.13 |
0.05 |
2.45 |
0.05 |
2.90 |
|
150 |
15 |
0.09 |
1.80 |
0.06 |
1.87 |
0.06 |
2.27 |
0.06 |
2.80 |
|
180 |
18 |
0.10 |
1.60 |
0.07 |
1.73 |
0.07 |
2.15 |
0.07 |
2.60 |
|
220 |
22 |
0.13 |
1.50 |
0.08 |
1.60 |
0.08 |
1.95 |
0.08 |
2.50 |
|
270 |
27 |
0.16 |
1.30 |
0.10 |
1.44 |
0.10 |
1.76 |
0.09 |
2.40 |
|
330 |
33 |
0.22 |
1.20 |
0.12 |
1.26 |
0.11 |
1.50 |
0.10 |
2.20 |
|
390 |
39 |
0.26 |
1.10 |
0.15 |
1.20 |
0.12 |
1.37 |
0.11 |
2.00 |
|
470 |
47 |
0.30 |
1.10 |
0.17 |
1.10 |
0.14 |
1.28 |
0.13 |
1.90 |
|
560 |
56 |
0.38 |
0.94 |
0.20 |
1.01 |
0.19 |
1.17 |
0.14 |
1.50 |
|
680 |
68 |
0.42 |
0.85 |
0.25 |
0.91 |
0.21 |
1.11 |
0.17 |
1.30 |
|
820 |
82 |
0.51 |
0.78 |
0.30 |
0.85 |
0.28 |
1.00 |
0.19 |
1.15 |
|
101 |
100 |
0.56 |
0.72 |
0.40 |
0.74 |
0.34 |
0.97 |
0.23 |
1.10 |
|
121 |
120 |
0.66 |
0.66 |
0.50 |
0.69 |
0.39 |
0.89 |
0.26 |
1.00 |
|
151 |
150 |
0.81 |
0.58 |
0.54 |
0.61 |
0.46 |
0.78 |
0.31 |
0.90 |
|
181 |
180 |
0.99 |
0.51 |
0.62 |
0.56 |
0.57 |
0.72 |
0.40 |
0.80 |
|
221 |
220 |
1.19 |
0.49 |
0.72 |
0.53 |
0.71 |
0.66 |
0.44 |
0.71 |
|
271 |
270 |
1.48 |
0.42 |
0.90 |
0.45 |
0.87 |
0.57 |
0.60 |
0.65 |
|
331 |
330 |
1.82 |
0.40 |
1.10 |
0.42 |
1.00 |
0.52 |
0.72 |
0.60 |
|
391 |
390 |
2.19 |
0.36 |
1.30 |
0.38 |
1.20 |
0.48 |
0.86 |
0.54 |
|
471 |
470 |
2.82 |
0.34 |
1.55 |
0.35 |
1.43 |
0.42 |
1.12 |
0.46 |
|
561 |
560 |
|
|
1.90 |
0.32 |
1.71 |
0.33 |
1.27 |
0.40 |
|
681 |
680 |
|
|
|
|
2.05 |
0.28 |
1.51 |
0.33 |
|
821 |
820 |
|
|
|
|
2.64 |
0.24 |
1.69 |
0.28 |
Measuring Freq: 100uH以下:100KHZ/0.25V ；100uH以上1KHZ /0.3V
IDC: The current when the inductance becomes 35% lower than its nominal value ,and temperature rise40℃△t=40℃(ta=20℃)
| 分享到： |
