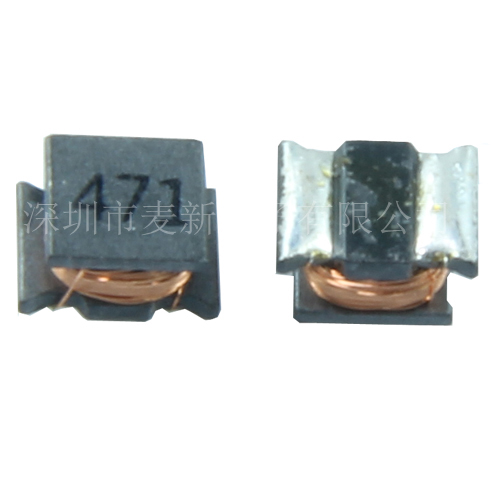

产品名称：MDS系列 产品编号：114135-959 产品型号：方形开放式电感 公司名称：深圳市麦新(MT)电子有限公司
|
点击查看大图 ↑ |
MDS TYPE

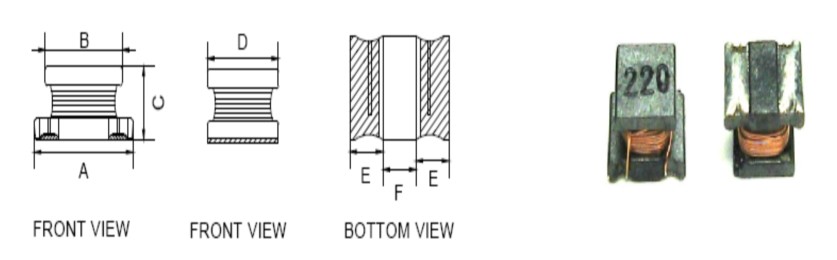

0External dimensions (unit : mm)（外观尺寸）
|
RART NO.. |
A±0.3 |
B±0.3 |
C±0.4 |
D((Ref) |
E(Ref) |
F(Ref) |
|
MDS0805 |
2.1 |
2.0 |
1.4 |
1.5 |
0.5 |
1.O |
|
MDS1008 |
2.5 |
2.0 |
1.8 |
2.0 |
0.6 |
1.3 |
|
MDS1206 |
3.2 |
2.3 |
1.8 |
1.6 |
0.9 |
1.3 |
|
MDS1210L |
3.2 |
2.5 |
1.55 |
2.5 |
0.9 |
1.3 |
|
MDS1210 |
3.2 |
2.5 |
2.0 |
2.5 |
O.9 |
1.3 |
|
MDS1812 |
4.5 |
3.6 |
2.6 |
3.2 |
1.6 |
1.3 |
0PART NUMBERING SYSTEM （品名系统）
MDS 1206 - 100 K - C
1 2 3 4 5
1 Series Name 品名 麦新电感品名.
2 Dimensions 尺寸 外围X高度
3 Inductance 电感值 前两位为有效数字,第三位表0的个数, 1R0:1.O uH. ;1OO :10uH.; 101:100uH
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包装方式 C: Tape& Reel (卷装) B: In Bulk (散装/袋装)
0FEATURES (特性)
High frequency design、excellent Q values、excellent SRF、high reality、excellent thermal stability.
具有高频、高Q值、高可靠性、抗电磁干扰之特性
0APPLICATION (用途)
Modems、mobile radios、cordless telephones global positioning systems XDSL filer、、Wireless communications equipment、networking system、computer products and peripherals
手提电话、室内无线电话、环球定位系统、无线传输产品、电脑及网络周边设备。
MDS TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) (uH) |
MDS0805 |
MDS1008 |
MDS1206 |
|||
|
DCR (Ω) Max |
IDC (A) |
DCR (Ω) Max |
IDC (A) |
DCR (Ω) Max |
IDC (A) |
||
|
1R0 |
1.0 |
0.16 |
0.75 |
0.078 |
0.300 |
0.104 |
0.175 |
|
1R2 |
1.2 |
|
|
0.090 |
0.290 |
0.118 |
0.165 |
|
1R5 |
1.5 |
0.247 |
0.70 |
0.100 |
0.280 |
0.157 |
0.155 |
|
1R8 |
1.8 |
|
|
0.110 |
0.270 |
0.196 |
0.150 |
|
2R2 |
2.2 |
0.330 |
0.61 |
0.120 |
0.250 |
0.260 |
0.140 |
|
2R7 |
2.7 |
0.360 |
0.55 |
0.200 |
0.240 |
0.290 |
0.135 |
|
3R3 |
3.3 |
0.500 |
0.50 |
0.240 |
0.230 |
0.330 |
0.130 |
|
3R9 |
3.9 |
0.700 |
0.49 |
0.280 |
0.220 |
0.350 |
0.125 |
|
4R7 |
4.7 |
0.74 |
0.47 |
0.300 |
0.210 |
0.400 |
0.120 |
|
5R6 |
5.6 |
|
|
0.340 |
0.205 |
0.540 |
0.115 |
|
6R8 |
6.8 |
0.97 |
0.45 |
0.440 |
0.200 |
0.590 |
0.110 |
|
8R2 |
8.2 |
1.490 |
0.40 |
0.590 |
0.195 |
0.820 |
0.105 |
|
100 |
10 |
1.62 |
0.37 |
0.680 |
0.190 |
0.970 |
0.100 |
|
120 |
12 |
1.89 |
0.34 |
0.770 |
0.185 |
1.030 |
0.095 |
|
150 |
15 |
2.17 |
0.32 |
0.870 |
0.180 |
1.140 |
0.090 |
|
180 |
18 |
|
|
1.200 |
0.175 |
1.270 |
0.085 |
|
220 |
22 |
3.42 |
0.25 |
1.340 |
0.170 |
1.520 |
0.085 |
|
270 |
27 |
4.28 |
0.21 |
1.860 |
0.165 |
2.090 |
0.085 |
|
330 |
33 |
5.47 |
0.20 |
2.100 |
0.160 |
2.510 |
0.080 |
|
390 |
39 |
6.29 |
0.17 |
2.350 |
0.155 |
3.600 |
0.085 |
|
470 |
47 |
9.87 |
0.13 |
3.300 |
0.150 |
4.100 |
0.085 |
|
560 |
56 |
|
|
3.700 |
0.145 |
4.540 |
0.080 |
|
680 |
68 |
12.17 |
0.11 |
6.000 |
0.135 |
5.03 |
0.080 |
|
820 |
82 |
14.50 |
0.09 |
6.900 |
0.125 |
5.64 |
0.080 |
|
101 |
100 |
19.620 |
0.08 |
7.750 |
0.110 |
6.30 |
0.080 |
|
121 |
120 |
22.030 |
0.02 |
|
|
13.39 |
0.070 |
|
151 |
150 |
|
|
|
|
14.75 |
0.070 |
|
181 |
180 |
|
|
|
|
16.16 |
0.070 |
|
221 |
220 |
|
|
13.420 |
0.090 |
|
|
|
271 |
270 |
|
|
|
|
29.70 |
0.011 |
|
331 |
330 |
|
|
|
|
43.06 |
0.010 |
|
391 |
390 |
|
|
|
|
51.00 |
0.009 |
|
471 |
470 |
|
|
|
|
53.50 |
0.08 |
|
821 |
820 |
|
|
|
|
66.10 |
0.05 |
Measuring Freq: 100uH以下:100KHZ/0.25V ；100uH以上1KHZ /0.3V
IDC: The current when the inductance becomes 35% lower than its nominal value ,and temperature rise40℃△t=40℃(ta=20℃)
