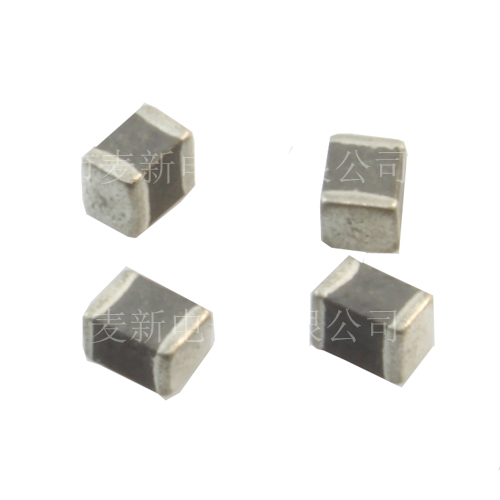

产品名称：MTL系列 产品编号：113452-583 产品型号：叠层电感 公司名称：深圳市麦新(MT)电子有限公司
|
点击查看大图 ↑ |
MTL TYPE

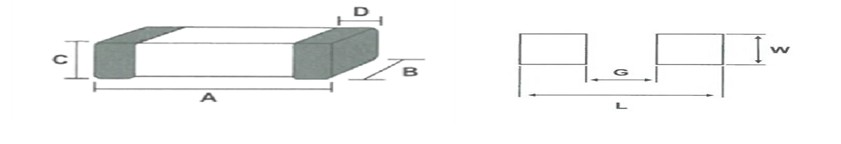

0External dimensions (unit : mm)（外观尺寸)
|
PART N0. |
A |
B |
C |
D |
L |
W |
G |
|
MTL160808 |
1.6±0.2 (0.063±0.008) |
0.8±O.2 (0.031±0.008) |
0.8±O.2 (0.031±0.008) |
3.2±O.2 (0.012±0.008) |
21 (0.083) |
0.7 (0.028) |
0.7 (0.028) |
|
MTL201209 |
2.0±0.2 (0.079±0.008) |
1.2±0.2 (0.047±0.008) |
0.9±0.2 (0.035±0.008) |
O.5±0.3 (0.020±0.012) |
2.6 (0.102) |
1.O (0.039) |
1.O (0.039) |
|
MTL201212 |
2.0±0.2 (0.079±0.008) |
1.2±0.2 (0.047±0.008) |
1.2±0.2 (0.047±0.008) |
0.5±0.3 (0.020±0.012) |
2.6 (0.102) |
1.0 (0.039) |
1.0 (0.039) |
|
MTL321611 |
3.2±0.2 (0.126±0.008) |
1.6±0.2 (0.063±0.008) |
1.1±0.2 (0.043±0.008) |
O.5±0.3 (0.020±0.012) |
4.4 (0.173) |
1.4 (0.055) |
2.2 (0.087) |
0PART NUMBERING SYSTEM （品名系统）
MTL 160808 - 口 口 口
1 2 3 4 5
1 Series Name 品名 麦新叠层电感料号.
2 Dimensions 尺寸 外围X高度
3 Inductance 电感值 前两位为有效数字,第三位表0的个数, 150:15 uH. 151 :150uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包装方式 T: Tape& Reel (卷装) B: In Bulk (散装/袋装)
0FEATURES (特性)
•Excellent solderability and high heat resistance for
either flow or reflow or reflow soldering
具有优良的焊接和耐热能力，适用于波峰焊及回流焊接
•Superior Q characteristics guaranteed over the wide frequency allow high frequency application
优秀的Q特性保证在广阔的频率下有高频输出
•Dimensions are suitable for automatic mounting
尺寸适合自动装备
0APPLICATION(应用)
•EF module of telecommunication products,
personal handy-phone systems,pagers,cellular
phones,computer communications,etc.
电子通讯器材、个人手提电话系统、传呼机、
移动电话（大哥大）、电脑通讯等的RF模组
|
PART N0. |
Inductance (uH) |
DC Resistance (Ω)Max. |
Rated Current (MA) Max. |
|
MTL160808-47NM |
0.047±20% |
0.30 |
50 |
|
MTL160808-R10K |
0.10±10% |
0.50 |
50 |
|
MTL160808-R15K |
0.15±10% |
0.60 |
50 |
|
MTL160808-R22K |
0.22±10% |
0.80 |
50 |
|
MTL160808-R33K |
0.33±10% |
0.85 |
35 |
|
MTL160808-R47K |
0.47±10% |
1.35 |
35 |
|
MTL160808-R68K |
0.68±10% |
1.70 |
35 |
|
MTL160808-1R0K |
1.0±10% |
0.60 |
25 |
|
MTL160808-1R5K |
1.5±10% |
0.80 |
25 |
|
MTL160808-2R2K |
2.2±10% |
1.15 |
15 |
|
MTL160808-3R3K |
3.3±10% |
1.55 |
15 |
|
MTL160808-4R7K |
4.7±10% |
2.10 |
15 |
|
MTL160808-6R8K |
6.8±10% |
1.70 |
5 |
|
MTL160808-120K |
12±10% |
2.10 |
3 |
|
|
|
|
|
|
MTL201209-47NM |
0.047±20% |
0.20 |
300 |
|
MTL201209-R10K |
0.10±10% |
0.30 |
250 |
|
MTL201209-R15K |
0.15±10% |
0.40 |
250 |
|
MTL201209-R22K |
0.22±10% |
0.50 |
250 |
|
MTL201209-R33K |
0.33±10% |
0.55 |
250 |
|
MTL201209-R47K |
0.47±10% |
0.65 |
200 |
|
MTL201209-R68K |
0.68±10% |
0.80 |
150 |
|
MTL201209-1R0K |
1.0±10% |
0.40 |
50 |
|
MTL201209-1R5K |
1.5±10% |
0.50 |
50 |
|
MTL201209-2R2K |
2.2±10% |
0.65 |
30 |
MTL160808/MTL321611 TYPE
MTL201212/MTL321611 TYPE
|
PART N0. |
Inductance (uH) |
DC Resistance (Ω)Max. |
Rated Current (MA) Max. |
|
MTL201212-2R7K |
2.7±10% |
0.75 |
30 |
|
MTL201212-3R9K |
3.9±10% |
0.90 |
30 |
|
MTL201212-5R6K |
5.6±10% |
0.90 |
15 |
|
MTL201212-8R2K |
8.2±10% |
1.10 |
15 |
|
MTL201212-100K |
10±10% |
1.15 |
15 |
|
MTL201212-150K |
15±10% |
0.80 |
5 |
|
MTL201212-220K |
22±10% |
1.10 |
5 |
|
MTL201212-270K |
27±10% |
1.15 |
5 |
|
MTL201212-330K |
33±10% |
1.25 |
5 |
|
|
|
|
|
|
MTL321611-47NM |
0.047±20% |
0.15 |
300 |
|
MTL321611-R10K |
0.10±10% |
0.25 |
250 |
|
MTL321611-R18K |
0.18±10% |
0.40 |
250 |
|
MTL321611-R33K |
0.33±10% |
0.60 |
250 |
|
MTL321611-R56K |
0.56±10% |
0.70 |
150 |
|
MTL321611-R82K |
0.82±10% |
0.90 |
150 |
|
MTL321611-1R2K |
1.2±10% |
0.50 |
100 |
|
MTL321611-1R8K |
1.8±10% |
0.50 |
50 |
|
MTL321611-2R7K |
2.7±10% |
0.60 |
50 |
|
MTL321611-3R9K |
3.9±10% |
0.80 |
50 |
|
MTL321611-6R8K |
6.8±10% |
0.80 |
25 |
|
MTL321611-120K |
12±10% |
1.05 |
15 |
|
MTL321611-150K |
15±10% |
0.70 |
5 |
|
MTL321611-180K |
18±10% |
0.70 |
5 |
|
MTL321611-220K |
22±10% |
0.90 |
5 |
|
MTL321611-270K |
27±10% |
0.90 |
5 |
|
MTL321611-330K |
33±10% |
1.05 |
5 |
