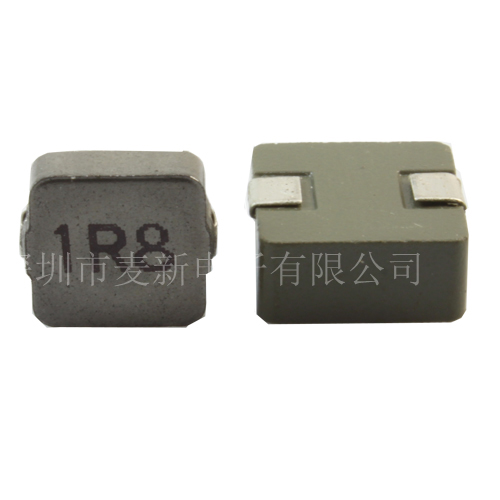

产品名称：MDDH系列 产品编号：112935-699 产品型号：一体成型电感 公司名称：深圳市麦新(MT)电子有限公司
|
点击查看大图 ↑ |
MDDH TYPE
0External dimensions (unit : mm)（外观尺寸）
|
PART NO. |
A |
B |
C(MAX) |
D(Ref) |
E(Ref) |
F(Ref) |
G(Ref) |
H(Ref) |
I(Ref) |
J(Ref) |
|
MDDH0312 |
3.4 |
3.0 |
1.2 |
1.0 |
0.6 |
1.4 |
0.9 |
1.0 |
4.2 |
1.2 |
|
MDDH0315 |
3.4 |
3.0 |
1.5 |
1.0 |
0.6 |
1.4 |
0.9 |
1.0 |
4.2 |
1.2 |
|
MDDH0320 |
3.4 |
3.0 |
2.0 |
1.0 |
0.6 |
1.4 |
0.9 |
1.0 |
4.2 |
1.2 |
|
MDDH0412 |
4.3 |
4.0 |
1.0 |
1.5 |
0.8 |
2.0 |
1.2 |
2.2 |
5.2 |
2.5 |
|
MDDH0415 |
4.3 |
4.0 |
1.5 |
1.5 |
0.8 |
2.0 |
1.2 |
2.2 |
5.2 |
2.5 |
|
MDDH0420 |
4.3 |
4.0 |
2.0 |
1.5 |
0.8 |
2.0 |
1.2 |
2.2 |
5.2 |
2.5 |
|
MDDH0515 |
5.2 |
4.7 |
1.5 |
2.0 |
1.0 |
2.5 |
1.6 |
2.5 |
7.5 |
3.5 |
|
MDDH0520 |
5.2 |
4.7 |
2.0 |
2.0 |
1.0 |
2.5 |
1.6 |
2.5 |
7.5 |
3.5 |
|
MDDH0530 |
5.2 |
4.7 |
3.0 |
2.0 |
1.0 |
2.5 |
1.6 |
2.5 |
7.5 |
3.5 |
|
MDDH0550 |
5.2 |
4.7 |
5.0 |
2.0 |
1.0 |
2.5 |
1.6 |
2.5 |
7.5 |
3.5 |
|
MDDH0620 |
6.5 |
6.0 |
2.0 |
2.5 |
1.3 |
3.0 |
1.6 |
3.2 |
7.5 |
3.5 |
|
MDDH0630 |
6.5 |
6.0 |
3.0 |
2.5 |
1.3 |
3.0 |
1.6 |
3.2 |
7.5 |
3.5 |
|
MDDH0640 |
6.5 |
6.0 |
4.0 |
2.5 |
1.3 |
3.0 |
1.6 |
3.2 |
7.5 |
3.5 |
|
MDDH0718 |
7.2 |
6.6 |
1.8 |
3.0 |
1.6 |
3.6 |
2.0 |
3.7 |
8.4 |
3.5 |
|
MDDH0720 |
7.2 |
6.6 |
2.0 |
3.0 |
1.6 |
3.6 |
2.0 |
3.7 |
8.4 |
3.5 |
|
MDDH0724 |
7.2 |
6.6 |
2.4 |
3.0 |
1.6 |
3.6 |
2.0 |
3.7 |
8.4 |
3.5 |
|
MDDH0730 |
7.2 |
6.6 |
3.0 |
3.0 |
1.6 |
3.6 |
2.0 |
3.7 |
8.4 |
3.5 |
|
MDDH0750 |
7.2 |
6.6 |
5.0 |
3.0 |
1.6 |
3.6 |
2.0 |
3.7 |
8.4 |
3.5 |
|
MDDH0840 |
7.8 |
7.2 |
5.0 |
3.0 |
1.6 |
3.6 |
2.0 |
4.3 |
9.6 |
3.5 |
|
MDDH1040 |
11.15 |
10.0 |
4.0 |
3.0 |
2.0 |
5.0 |
2.5 |
5.4 |
13.6 |
4.1 |
|
MDDH1045 |
11.15 |
10.0 |
4.5 |
3.0 |
2.0 |
5.0 |
2.5 |
5.4 |
13.6 |
4.1 |
|
MDDH1050 |
11.15 |
10.0 |
5.0 |
3.0 |
2.0 |
5.0 |
2.5 |
5.4 |
13.6 |
4.1 |
|
MDDH1335 |
13.45 |
12.6 |
3.5 |
4.0 |
2.0 |
6.0 |
2.5 |
8 |
14.5 |
5 |
|
MDDH1350 |
13.45 |
12.6 |
5.0 |
4.0 |
2.0 |
6.0 |
2.5 |
8 |
14.5 |
5 |
|
MDDH1365 |
13.45 |
12.6 |
6.5 |
4.0 |
2.0 |
6.0 |
2.5 |
8 |
14.5 |
5 |
0PART NUMBERING SYSTEM（品名系统）
MDDH 0312 - 1R0 N C
1 2 3 4 5
1 Series Name 品名 麦新料号
2 Dimensions 尺寸 外围X高度
3 Inductance 电感值 前两位为有效数字,第三位表0的个数, 150:15 uH. 151 :150uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包装方式 C: Tape&Reel (卷装) B: In Bulk (散装/袋装)
0FEATURES (特性)
一体化闭合磁路结构，屏蔽性好，可提升整机抗EMI特性
金属粒子包覆，具有良好的耐交-直流叠加特性
粉末冶金压铸结构，提升产品的物理强度
合金粉末压铸，涡流可有效分解，降低温升和整机损耗
可在几十赫兹到高达30兆赫兹的很宽频带下使用
从主体材料到生产过程，无任何有害物质析出，做到真正的节约环保
一体化模压成型电感器还具有优秀磁性能和温度稳定性
客制化程度高，可通过控制和改变合金粉末的合理调配，生产出各具独特性能的电感器，满足客户要求
0APPLICATION(用途)
电脑主机板、PC显卡、VGA模组
DC/DC、DC/AC转换器、电源分配系统、电源供应交换模组
开关电源、UPS电源、音响功放、视像设备、仪器仪表、机顶盒
DVD、摄像机、汽车电子
MID、智能电话
安防系统、液晶电视及便携式设备等数字电路
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0312 |
MDDH0315 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R22N |
0.22 |
|
|
|
|
11 |
14 |
5 |
8 |
|
R33N |
0.33 |
|
|
|
|
16 |
19 |
4 |
7 |
|
R47N |
0.47 |
|
|
|
|
24 |
29 |
3.5 |
5.5 |
|
R56N |
0.56 |
|
|
|
|
31 |
37 |
3 |
5 |
|
R68N |
0.68 |
46 |
55 |
2.5 |
4 |
42 |
50 |
3 |
4.5 |
|
R82M |
0.82 |
|
|
|
|
49 |
58 |
2.8 |
3.8 |
|
1R0N/M |
1.0 |
68 |
85 |
2 |
3.2 |
56 |
68 |
2.5 |
3.5 |
|
1R5N/M |
1.5 |
105 |
135 |
1.8 |
2.8 |
78 |
92 |
2 |
3 |
|
2R2N |
2.2 |
130 |
165 |
1.5 |
2.2 |
|
|
|
|
|
3R3N |
3.3 |
215 |
260 |
1 |
1.8 |
|
|
|
|
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0320 |
MDDH0412 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R22M |
0.22 |
9.5 |
12 |
6 |
9 |
|
|
|
|
|
R33M |
0.33 |
14 |
17 |
5 |
7 |
|
|
|
|
|
R47M |
0.47 |
|
|
|
|
24 |
30 |
3.5 |
6 |
|
R56M |
0.56 |
24 |
30 |
3.5 |
5.5 |
|
|
|
|
|
R68M |
0.68 |
28 |
33 |
3 |
4.5 |
36 |
41 |
3.5 |
5 |
|
R88M |
0.88 |
34 |
41 |
2.5 |
4.5 |
|
|
|
|
|
1R0M |
1.0 |
42 |
51 |
2 |
3.5 |
60 |
79 |
2.5 |
5 |
|
1R2M |
1.2 |
46 |
55 |
1.5 |
3.5 |
|
|
|
|
|
1R5M |
1.5 |
53 |
64 |
1.5 |
3 |
105 |
142 |
2 |
3.5 |
|
2R2M |
2.2 |
66 |
79 |
1 |
2.5 |
128 |
169 |
2 |
3 |
|
3R3M |
3.3 |
80 |
95 |
1 |
2 |
|
|
|
|
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0415 |
MDDH0420 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R10M |
0.10 |
|
|
|
|
5.5 |
8 |
12 |
25 |
|
R22M |
0.22 |
|
|
|
|
6.3 |
12 |
10 |
14 |
|
R47M |
0.47 |
20 |
27 |
5 |
9 |
11 |
14 |
7 |
9.5 |
|
R56M |
0.56 |
|
|
|
|
13 |
20 |
6.5 |
9 |
|
1R0M |
1.0 |
39 |
50 |
4 |
6 |
21 |
28 |
4.5 |
7 |
|
1R2M |
1.2 |
|
|
|
|
23 |
32 |
4 |
7 |
|
1R5M |
1.5 |
48 |
63 |
4 |
6 |
28 |
38 |
4 |
6 |
|
2R2M |
2.2 |
67 |
86 |
2.5 |
4 |
42 |
52 |
3 |
5 |
|
3R3M |
3.3 |
116 |
156 |
2 |
3.5 |
60 |
79 |
2.5 |
4 |
|
4R7M |
4.7 |
|
|
|
|
118 |
150 |
2 |
3 |
|
6R8M |
6.8 |
|
|
|
|
130 |
170 |
1.8 |
2 |
|
100M |
10 |
|
|
|
|
225 |
294 |
1.5 |
2 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0515 |
MDDH0520 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R68M |
0.68 |
|
|
|
|
15 |
20 |
5 |
10 |
|
1R0M |
1.0 |
31 |
40 |
4 |
5.5 |
15 |
21 |
5 |
8 |
|
1R2M |
1.2 |
|
|
|
|
17 |
27 |
5 |
8 |
|
1R5M |
1.5 |
|
|
|
|
20 |
26 |
4 |
6 |
|
2R2M |
2.2 |
35 |
42 |
3.5 |
4.5 |
32 |
42 |
3.5 |
6 |
|
3R3M |
3.3 |
44 |
58 |
2.5 |
3.5 |
44 |
58 |
3.5 |
5.5 |
|
4R7M |
4.7 |
156 |
200 |
2 |
3 |
68 |
90 |
3.2 |
4.5 |
|
5R6M |
5.6 |
|
|
|
|
75 |
97 |
3 |
4 |
|
100M |
10 |
|
|
|
|
170 |
221 |
2 |
3 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0530 |
MDDH0550 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R68M |
0.68 |
11 |
18 |
5 |
8 |
|
|
|
|
|
1R0M |
1.0 |
13 |
22 |
4 |
7 |
|
|
|
|
|
1R5M |
1.5 |
20 |
25 |
4 |
7 |
|
|
|
|
|
2R2M |
2.2 |
26.5 |
40 |
4 |
7 |
|
|
|
|
|
3R3M |
3.3 |
30 |
42 |
4 |
7 |
|
|
|
|
|
4R7M |
4.7 |
46 |
60 |
3 |
4.5 |
|
|
|
|
|
5R6M |
5.6 |
62 |
80 |
3 |
4 |
|
|
|
|
|
6R8M |
6.8 |
78 |
108 |
2.5 |
4 |
|
|
|
|
|
100M |
10 |
115 |
150 |
2 |
4 |
80 |
103 |
2.5 |
4.5 |
|
150M |
15 |
|
|
|
|
140 |
180 |
2 |
4 |
|
220M |
22 |
|
|
|
|
180 |
230 |
1.5 |
2.5 |
|
330M |
33 |
|
|
|
|
345 |
445 |
1.5 |
2 |
|
470M |
47 |
|
|
|
|
404 |
527 |
1 |
2 |
|
560M |
56 |
|
|
|
|
456 |
600 |
0.8 |
1 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0620 |
MDDH0630 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R68M |
0.68 |
|
|
|
|
12 |
16 |
11 |
16 |
|
1R0M |
1.0 |
14 |
20 |
6 |
8 |
|
|
|
|
|
1R5M |
1.5 |
20 |
27 |
5 |
7 |
16 |
22 |
9 |
12 |
|
2R2M |
2.2 |
27 |
35 |
4 |
6 |
17 |
20 |
8 |
11 |
|
2R7M |
2.7 |
|
|
|
|
25 |
34 |
6 |
8 |
|
3R3M |
3.3 |
49 |
65 |
3.5 |
5 |
32 |
45 |
5 |
7 |
|
4R7M |
4.7 |
65 |
90 |
3 |
4.5 |
34 |
45 |
5.5 |
7 |
|
5R6M |
5.6 |
|
|
|
|
54 |
70 |
5 |
7 |
|
6R8M |
6.8 |
106 |
139 |
2.5 |
4 |
63 |
84 |
4.5 |
6 |
|
100M |
10 |
180 |
240 |
2 |
3.5 |
75 |
100 |
4 |
6 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0640 |
MDDH0718 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
1R0M |
1.0 |
|
|
|
|
22 |
30 |
7 |
9 |
|
2R2M |
2.2 |
|
|
|
|
41 |
55 |
5 |
7 |
|
3R3M |
3.3 |
|
|
|
|
71 |
95 |
5 |
7 |
|
150M |
15 |
96 |
120 |
3 |
4 |
|
|
|
|
|
180M |
18 |
120 |
160 |
2 |
3 |
|
|
|
|
|
220M |
22 |
140 |
180 |
2.5 |
3 |
|
|
|
|
|
470M |
47 |
265 |
345 |
1.5 |
2.5 |
|
|
|
|
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0720 |
MDDH0724 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
1R0M |
1.0 |
16 |
21 |
7 |
14 |
11.6 |
15 |
7 |
14 |
|
1R5M |
1.5 |
17 |
20 |
7 |
10 |
19.5 |
25 |
6 |
10 |
|
2R2M |
2.2 |
33 |
43 |
5 |
9 |
27 |
35 |
5 |
8 |
|
3R3M |
3.3 |
44 |
57 |
4 |
8 |
35 |
58 |
4 |
7 |
|
4R7M |
4.7 |
70 |
91 |
3.5 |
5 |
55.8 |
73 |
3.5 |
5.5 |
|
5R6M |
5.6 |
89 |
118 |
3 |
4.5 |
|
|
|
|
|
6R8M |
6.8 |
100 |
120 |
2.5 |
4 |
|
|
|
|
|
8R2M |
8.2 |
168 |
217 |
2.2 |
3.5 |
|
|
|
|
|
100M |
10 |
188 |
224 |
2 |
3 |
91 |
110 |
2 |
3.5 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0730 |
MDDH0750 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R10M |
0.10 |
1.5 |
1.7 |
32.5 |
60 |
|
|
|
|
|
R22M |
0.22 |
2.3 |
2.9 |
23 |
40 |
|
|
|
|
|
R33M |
0.33 |
3.2 |
3.9 |
20 |
30 |
|
|
|
|
|
R36M |
0.36 |
|
|
|
|
3.2 |
3.5 |
21 |
25 |
|
R47M |
0.47 |
3.6 |
4.7 |
17.5 |
26 |
|
|
|
|
|
R56M |
0.56 |
4.3 |
5.7 |
16.5 |
25.5 |
3.4 |
3.6 |
20 |
18 |
|
R68M |
0.68 |
5.7 |
7.4 |
15.5 |
25 |
3.9 |
4.2 |
18 |
17 |
|
R82M |
0.82 |
6.7 |
8 |
13 |
24 |
4.6 |
4.9 |
16.5 |
16 |
|
1R0M |
1.0 |
9 |
10 |
11 |
22 |
6.5 |
8.5 |
10 |
16 |
|
1R5M |
1.5 |
10.5 |
13.7 |
9 |
18 |
8.5 |
12 |
8 |
14 |
|
2R2M |
2.2 |
12.5 |
19 |
8 |
14 |
11 |
14 |
7 |
12 |
|
3R3M |
3.3 |
20 |
30 |
6 |
10 |
18 |
22 |
6.5 |
11 |
|
4R7M |
4.7 |
28 |
40 |
5.5 |
10 |
22 |
30 |
6 |
10 |
|
5R6M |
5.6 |
34 |
45 |
5.5 |
8 |
|
|
|
|
|
6R8M |
6.8 |
40 |
51 |
4.5 |
8 |
33 |
45 |
4.5 |
9 |
|
8R2M |
8.2 |
54 |
68 |
4.5 |
6 |
|
|
|
|
|
100M |
10 |
60 |
102 |
3 |
7 |
|
|
|
|
|
220M |
22 |
|
|
|
|
108 |
140 |
2.2 |
4 |
|
330M |
33 |
|
|
|
|
160 |
210 |
2 |
4 |
|
470M |
47 |
|
|
|
|
192 |
247 |
2 |
3 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH0850 |
MDDH1040 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R36M |
0.36 |
|
|
|
|
1.7 |
2.2 |
30 |
50 |
|
R47M |
0.47 |
|
|
|
|
2.6 |
3.3 |
25 |
33 |
|
R56M |
0.56 |
|
|
|
|
2.6 |
3.3 |
25 |
33 |
|
R68M |
0.68 |
|
|
|
|
2.7 |
3.5 |
18 |
30 |
|
1R0M |
1.0 |
|
|
|
|
3 |
3.3 |
18 |
28 |
|
1R5M |
1.5 |
|
|
|
|
3.8 |
4.2 |
16 |
25 |
|
2R2M |
2.2 |
10 |
12 |
9 |
14 |
6 |
7 |
10 |
18 |
|
3R3M |
3.3 |
|
|
|
|
10.8 |
11.8 |
9 |
14 |
|
5R6M |
5.6 |
|
|
|
|
20 |
23 |
7.5 |
14 |
|
6R8M |
6.8 |
23 |
30 |
5.5 |
8 |
22.5 |
25 |
6.5 |
9 |
|
100M |
10 |
37 |
65 |
4.8 |
7 |
27.5 |
30 |
6 |
8 |
|
150M |
15 |
|
|
|
|
53 |
70 |
3.6 |
6 |
|
220M |
22 |
107 |
140 |
3 |
4 |
73 |
92 |
4 |
6 |
|
270M |
27 |
140 |
182 |
3 |
5 |
|
|
|
|
|
330M |
33 |
194 |
237 |
2 |
4 |
136 |
177 |
3 |
5 |
|
470M |
47 |
206 |
247 |
2 |
3 |
|
|
|
|
|
560M |
56 |
240 |
310 |
2 |
3 |
|
|
|
|
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH1045 |
MDDH1050 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
1R0M |
1.0 |
2.7 |
3.2 |
20 |
32 |
|
|
|
|
|
2R2M |
2.2 |
5.8 |
7 |
14 |
16 |
|
|
|
|
|
3R3M |
3.3 |
11 |
13.2 |
11 |
14.5 |
|
|
|
|
|
4R7M |
4.7 |
13.2 |
15 |
10 |
13 |
|
|
|
|
|
5R2M |
5.2 |
|
|
|
|
16 |
21 |
5.5 |
10 |
|
5R6M |
5.6 |
16 |
18.5 |
8.5 |
10.5 |
|
|
|
|
|
6R8M |
6.8 |
21.5 |
29 |
4 |
9 |
|
|
|
|
|
150M |
15 |
|
|
|
|
39 |
52 |
3.6 |
6 |
|
220M |
22 |
|
|
|
|
73 |
92 |
4 |
6 |
|
330M |
33 |
77 |
101 |
3 |
5 |
107 |
120 |
3 |
5 |
|
470M |
47 |
160 |
210 |
3 |
4 |
160 |
210 |
3 |
4 |
|
680M |
68 |
|
|
|
|
240 |
300 |
3 |
4 |
|
101M |
100 |
|
|
|
|
320 |
400 |
2 |
3 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH1335 |
MDDH1350 |
||||||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
||||
|
典型值 Typical |
最大值 Max |
典型值 Typical |
最大值 Max |
||||||
|
R22M |
0.22 |
0.65 |
1.0 |
32 |
65 |
|
|
|
|
|
R33M |
0.33 |
0.9 |
1.3 |
30.5 |
60 |
|
|
|
|
|
R36M |
0.36 |
|
|
|
|
0.72 |
1.7 |
35 |
70 |
|
R39M |
0.39 |
1.1 |
1.5 |
30 |
60 |
|
|
|
|
|
R47M |
0.47 |
1.35 |
1.7 |
30 |
55 |
1.6 |
2.5 |
30 |
60 |
|
R56M |
0.56 |
1.9 |
3.0 |
25 |
45 |
2.3 |
3.5 |
25 |
45 |
|
R68M |
0.68 |
2.3 |
2.5 |
24 |
48 |
2.5 |
4.0 |
24 |
44 |
|
R82M |
0.82 |
|
|
|
|
2.7 |
4.5 |
22 |
42 |
|
1R0M |
1.0 |
3.3 |
3.5 |
22 |
45 |
3.1 |
5.0 |
20 |
40 |
|
1R2M |
1.2 |
|
|
|
|
3.5 |
6.0 |
20 |
40 |
|
1R5M |
1.5 |
5.1 |
5.5 |
18 |
35 |
3.7 |
8.0 |
18 |
30 |
|
2R2M |
2.2 |
7.2 |
8 |
16 |
29 |
5.2 |
11 |
15 |
25 |
|
3R3M |
3.3 |
10 |
12 |
12 |
27 |
6.9 |
10 |
15 |
20 |
|
4R7M |
4.7 |
17 |
26 |
11 |
20 |
10 |
13 |
12 |
18 |
|
6R8M |
6.8 |
|
|
|
|
13.1 |
17 |
11 |
17 |
|
100M |
10 |
|
|
|
|
21 |
28 |
7 |
11 |
|
150M |
15 |
|
|
|
|
32 |
41 |
6 |
9 |
|
220M |
22 |
|
|
|
|
51 |
66 |
4 |
6 |
|
330M |
33 |
|
|
|
|
65 |
84 |
4 |
6 |
|
470M |
47 |
|
|
|
|
84 |
110 |
3 |
5 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
MDDH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDDH1365 |
|||
|
DC Resistance 直流电阻（mΩ） |
Heat Rating Current 温升电流（A） |
Saturation Current 饱和电流（A） |
|||
|
典型值 Typical |
最大值 Max |
||||
|
R22M |
0.22 |
0.39 |
0.9 |
38 |
70 |
|
R33M |
0.33 |
0.71 |
0.9 |
36 |
65 |
|
R36M |
0.36 |
0.75 |
1.0 |
36 |
65 |
|
R80M |
0.80 |
0.86 |
1.2 |
20 |
32 |
|
2R2M |
2.2 |
4.7 |
6.1 |
17 |
26 |
|
3R3M |
3.3 |
5.9 |
7.1 |
15 |
27 |
|
5R6M |
5.6 |
9 |
12 |
12 |
24 |
|
7R8M |
7.8 |
13.5 |
17 |
10 |
17 |
|
100M |
10 |
15 |
18 |
8 |
12 |
|
220M |
22 |
33.5 |
36 |
5 |
8 |
|
330M |
33 |
48 |
57 |
4 |
6 |
|
470M |
47 |
57.5 |
75 |
5 |
7 |
|
560M |
56 |
74 |
95 |
3 |
4.5 |
|
680M |
68 |
113 |
148 |
3 |
6 |
|
101M |
100 |
240 |
310 |
2.5 |
4 |
|
151M |
150 |
231 |
280 |
2 |
3 |
Measuring Freq: 100KHZ/1V
Isat:The current when the inductance becomes 30% lower than its nominal value.(ta=40℃)
| 分享到： |
