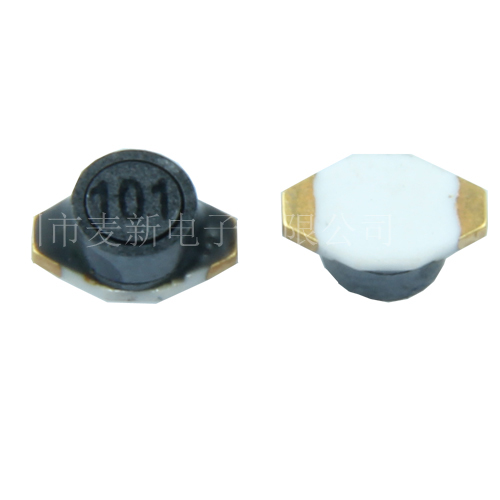

产品名称：MDRC系列 产品编号：111649-653 产品型号：封闭型小飞碟 公司名称：深圳市麦新(MT)电子有限公司
|
点击查看大图 ↑ |
MDCR TYPE

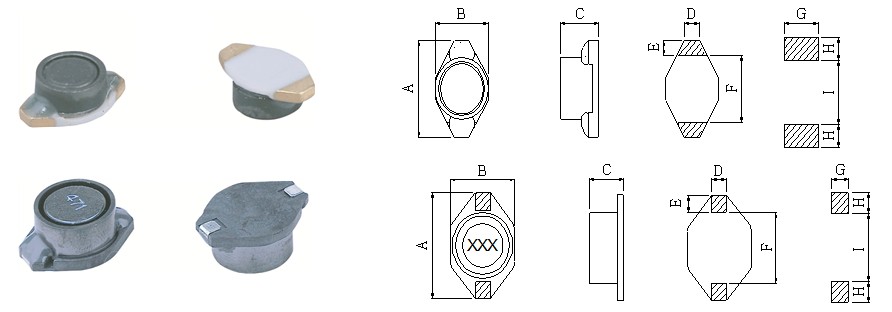

0External dimensions (unit : mm)（外观尺寸)
.jpg)
|
PART NO. |
A |
B |
C |
D |
E（Ref） |
F（Ref） |
G（Ref） |
|
MDCR4530 |
6.6Max |
4.45Max |
4.9Max |
1.27Max |
1.27 |
4.32 |
1.52 |
|
MDCR3316 |
12.95Max |
9.4Max |
5.21Max |
2.54Max |
2.54 |
7.62 |
2.79 |
|
MDCR5022 |
18.45Max |
15.24Max |
7.11Max |
2.54Max |
2.54 |
12.7 |
2.79 |
MDCR TYPE
0PART NUMBERING SYSTEM （品名系统）
MDCR 4530 - 100 M - C
1 2 3 4 5
1 Series Name 品名 麦新电感料号.
2 Dimensions 尺寸 外围X高度
3 Inductance 电感值 前两位为有效数字,第三位表0的个数, 150:15 uH. 151 :150uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包装方式 C: Tape&Reel (卷装) B: In Bulk (散装/袋装)
0FEATURES (特性)
Various high power inductors are superior to be high saturation for surface mounting
高功率，高饱和电流。适用于表面贴装
0APPLICATION (用途)
Power supply for VCRS; OA equipment Digital camera ,LCD television set notebook PC,portable communication equipments,DC/DC converters ,etc.
录像机，笔记本电脑，0A仪器，数码相机，液晶电视，小型通信设备，DC/DC转换器等。
MDCR TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDCR4530 |
MDCR3316 |
MDCR5022 |
|||
|
DCR (Ω) Max |
Isat (A) |
DCR (Ω) Max |
Isat (A) |
DCR (Ω) Max |
Isat (A) |
||
|
1R0 |
1.0 |
0.04 |
3.0 |
0.021 |
5.6 |
|
|
|
1R5 |
1.5 |
0.045 |
2.8 |
0.022 |
5.2 |
|
|
|
2R2 |
2.2 |
0.05 |
1.8 |
0.032 |
5 |
|
|
|
3R3 |
3.3 |
0.055 |
1.6 |
0.039 |
3.9 |
|
|
|
4R7 |
4.7 |
0.066 |
1.4 |
0.054 |
3.2 |
|
|
|
6R8 |
6.8 |
0.065 |
1.2 |
0.075 |
2.8 |
|
|
|
100 |
10 |
0.075 |
1.0 |
0.101 |
2.4 |
0.04 |
8 |
|
150 |
15 |
0.09 |
0.8 |
0.150 |
2.0 |
0.048 |
7 |
|
220 |
22 |
0.11 |
0.7 |
0.207 |
1.6 |
0.059 |
6 |
|
330 |
33 |
0.19 |
0.6 |
0.0334 |
1.4 |
0.075 |
5 |
|
470 |
47 |
0.23 |
0.5 |
0.472 |
1.0 |
0.097 |
4 |
|
680 |
68 |
0.29 |
0.4 |
0.660 |
0.9 |
0.138 |
3 |
|
101 |
100 |
0.48 |
0.3 |
1.11 |
0.8 |
0.207 |
2.4 |
|
151 |
150 |
0.59 |
0.26 |
1.55 |
0.6 |
0.293 |
2.1 |
|
221 |
220 |
0.77 |
0.22 |
2.0 |
0.5 |
0.47 |
1.9 |
|
331 |
330 |
1.4 |
0.2 |
|
|
0.78 |
1.1 |
|
471 |
470 |
1.8 |
0.19 |
|
|
1.08 |
1.1 |
|
681 |
680 |
2.2 |
0.18 |
|
|
1.4 |
0.96 |
|
102 |
1000 |
3.4 |
0.15 |
|
|
2.01 |
0.8 |
Measuring Freq: 100uH以下:100KHZ/0.25V ；100uH以上1KHZ /0.3V
IDC: The current when the inductance becomes 35% lower than its nominal value ,and temperature rise40℃△t=40℃(ta=20℃)
